CNC Panel Bender vs. Press Brake: How to Choose the Right Bending Center for Your Production
Meta Description: Compare Dontzer's DES & DFB series CNC panel benders against conventional press brakes. Learn which bending center suits multi-variety small-batch vs. large-batch production, with full specs and real-world selection advice.
Target Keywords: CNC panel bender, panel bending center, press brake vs panel bender, sheet metal bending machine, DES series, DFB series, flexible bending center, multi-variety small batch production
Introduction: Why Bending Equipment Selection Matters More Than Ever
In today's sheet metal fabrication industry, the gap between winning and losing a contract often comes down to bending efficiency. Fabricators face mounting pressure to handle more part varieties in smaller batches while keeping labor costs down and quality consistent. The choice between a CNC panel bender and a conventional press brake is no longer just a machine purchase — it's a strategic production decision.
Qingdao Dongze Numerical Control Technology Co., Ltd. (DONTZER) has spent over a decade developing precision sheet metal equipment, accumulating more than 20 technical patents. The company's DES series flexible bending center has been recognized as a "specialized, refined, and new" product in Qingdao — a designation reserved for equipment with genuine technological differentiation. This article examines Dontzer's DES series flexible bending center and DFB series CNC panel bender against conventional press brake technology, helping you determine which solution fits your production profile.
What Is a CNC Panel Bender (Bending Center)?
A CNC panel bender — also called a panel bending center or flexible bending center — operates on a fundamentally different principle from a press brake. Instead of a punch descending into a V-die, a panel bender uses upper and lower bending blades that rotate around a defined bend axis. The sheet is clamped between a blank holder and a bending beam, and the blade swings through an arc to form the flange. This rotational bending action produces both positive bends (flange up) and negative bends (flange down) within the same machine cycle by reversing the blade's rotation direction.
The practical consequence: where a press brake requires the operator to reposition the workpiece between each bend, a panel bender uses a manipulator system that holds the sheet and advances it automatically between successive bends, executing multiple bends in a programmed sequence without manual repositioning. For parts with six, eight, or more bends, this difference transforms the production workflow entirely.
Dontzer's DES series flexible bending center embodies this principle with a full closed-loop control system driven by dual servo motors, achieving a coordinated motion error controlled within ±0.02 mm. The system supports a wide range of bending angles — including special-shaped bending, forward and reverse bending, and arc bending — all without requiring mould changes between different products.
Key Advantages of CNC Panel Benders Over Conventional Press Brakes
1. No Mould Change Required — Slash Setup Time
For multi-variety, small-batch production, the traditional press brake workflow of die changing, programming, and trial folding creates a persistent efficiency bottleneck. Dontzer's panel bending center eliminates this entirely: different products can be processed without changing moulds, dramatically improving working efficiency. Operators simply load the next program and begin bending.
2. One-Time Clamping — No Manual Flipping
Conventional press brake operation involves the operator in every bending step. For complex multi-bend parts, the operator must pick up the sheet, gauge it, hold it flat during the bend, and manage the emerging flange — then repeat for each subsequent bend. Dontzer's panel bender performs one-time clamping with no manual workpiece flipping required. This not only boosts efficiency but also greatly reduces the risk of safety accidents, addressing one of the most persistent concerns in sheet metal fabrication.
3. High Precision and Stability — Extremely Low Reject Rate
Dontzer's DES series delivers high precision and strong stability with an extremely low reject rate, directly saving material and labor costs. The full closed-loop servo control system with ±0.02 mm coordinated motion error ensures consistent results across production runs. For batch processing, this translates to high consistency of finished parts — a critical factor when serving customers with demanding quality standards.
4. Simple Operation — New Operators Master It Quickly
The user-friendly HMI interface makes the system easy to learn and operate, with flexible programming and debugging capabilities. New operators can master the machine quickly, cutting labor and training costs significantly. This is particularly valuable in regions where skilled press brake operators are increasingly difficult to recruit and retain.
5. Wide Range of Bending Capabilities
Dontzer's panel bending center supports special-shaped bending, forward & reverse bending, arc bending, and more. Complex profiles can be formed in one pass, including up/down bending, non-right-angle bends, arc bends, multi-edge bending, and hemming. No extra special bending tools are needed for special parts — a significant advantage over conventional press brakes that require dedicated tooling for each profile variation.
6. Built-In Tool Protection and Material Savings
Bending tool offset load protection effectively protects key machine components, prevents workpiece damage, and reduces material waste. The system continuously monitors bending conditions to safeguard both the machine and the workpiece.
DES Series vs. DFB Series: Which Dontzer Bending Center Is Right for You?
Dontzer offers two distinct panel bender platforms, each optimized for different production scenarios. Choosing the wrong one means either sacrificing efficiency or over-investing in capabilities you don't need.

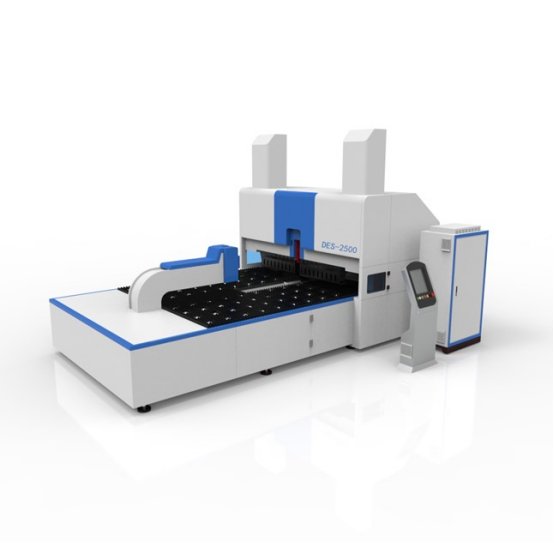

DES Series Flexible Bending Center — For Multi-Variety, Small-Batch Production
The DES series is purpose-built for multi-variety and small-batch production with medium to large-size plate processing. Its defining characteristic is mould-free operation: switching between different products requires no physical tooling changes, making it ideal for job shops and contract manufacturers handling diverse order portfolios.
DES Series Core Specifications:
Parameter | DES-1200 | DES-1400 | DES-2000 | DES-2500 |
Max. Bending Length | 1200 mm | 1400 mm | 2000 mm | 2500 mm |
Bending Height | 175 mm | 175 mm | 175 mm | 175 mm |
Max. Bending Thickness (Stainless Steel) | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm |
Max. Bending Thickness (Carbon Steel) | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
Max. Bending Thickness (Aluminum) | 1.6 mm | 1.6 mm | 1.6 mm | 1.6 mm |
Bending Degree | 0–360° | 0–360° | 0–360° | 0–360° |
Bending Angle Accuracy | ±1° | ±1° | ±1° | ±1° |
Feeding Length Accuracy | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
Operating System | Windows CE | Windows CE | Windows CE | Windows CE |
Specifications sourced from Dontzer's official product documentation.

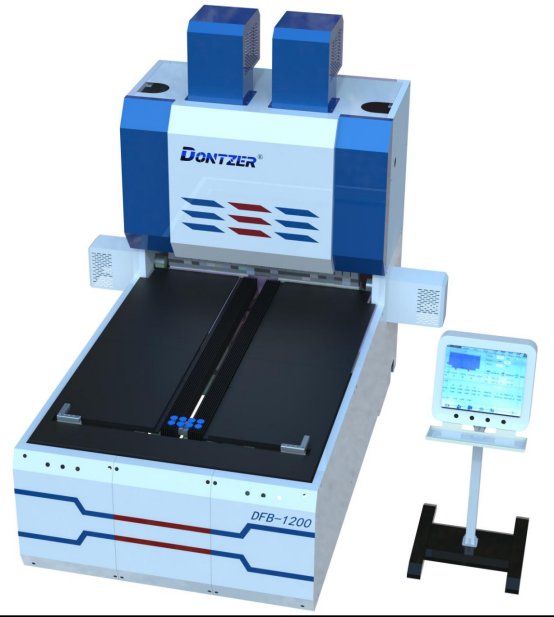

DFB Series CNC Panel Bender — For Large-Batch, Single-Variety Production
The DFB series is designed for small and thin sheets in large-batch, single-variety production. Its key advantage is surface quality: no indentations or scratches on the plate surface, delivering superior quality for customers with strict surface requirements. Processing speed is high, enabling excellent productivity for high-volume runs.
The DFB series is the right choice when:
Your production is dominated by one or two part types running continuously
You process thin sheets with strict surface finish requirements (e.g., visible appliance panels, decorative components)
Maximum throughput per machine hour is the primary KPI
Your order book is stable and predictable
The DFB series is NOT ideal when:
You frequently switch between different part designs
Your batch sizes are small and order variety is high
You need to process large-size plates that exceed thin-sheet parameters
DFB limitation: Not ideal for large-batch & single-variety bending jobs. It can process such parts, but the efficiency is lower than the DES series.
CNC Panel Bender vs. Conventional Press Brake: A Direct Comparison
Factor | CNC Panel Bender (DES/DFB Series) | Conventional Press Brake |
Mould Changes | Not required for different products | Frequent upper/lower tool changes required |
Workpiece Handling | One-time clamping; no manual flipping | Operator repositions between each bend |
Setup Time | Near-zero; program-based switching | Long initial setup; die changing bottleneck |
Batch Consistency | High — full closed-loop servo control | Variable — depends on operator skill |
Operator Skill Required | Low — user-friendly HMI; quick to master | High — experienced operators essential |
Safety Risk | Minimal — no manual flipping | Higher — manual handling during bending |
Automation Expandability | High — robot arms, gantry loading, production line integration | Limited — manual or semi-automatic only |
Special Profiles | One-pass forming of complex profiles | Multiple setups and special tools required |
Bending Speed | Faster — up to 0.2 sec per bend (DES series) | Slower — manual repositioning per bend |
Energy Consumption | Lower | Higher |
Maintenance | Simple routine maintenance; lower cost | More frequent tool maintenance |
Multi-Variety Flexibility | Excellent — no tooling change | Poor — die change required per variant |
Comparison factors drawn from Dontzer's official product documentation and industry analysis.
Real-World Applications: Where Dontzer Bending Centers Deliver
Dontzer's bending centers are widely deployed across multiple metal-forming industries:
Office Furniture & Steel Doors — Multi-variety production with frequent design changes
Refrigeration Equipment — Large panels with consistent quality requirements
Chassis & Cabinets — Complex profiles requiring multiple bends per part
Tool Cabinets — Batch production with high surface quality standards
Curtain Wall & Architectural Panels — Large-size plate processing
Restaurant & Kitchen Equipment — Stainless steel fabrication with strict hygiene requirements
These applications benefit from the panel bender's core strength: producing complex, multi-bend parts with consistent quality and minimal operator intervention.
Automation and Integration Capabilities
Dontzer's panel bending centers support multiple loading and unloading modes:
1.Manual loading/unloading — for flexible, low-volume operations
2. Gantry robot loading/unloading — for semi-automated production lines
3.Robotic arm loading/unloading — for full automation
4.The high expandability of the platform means robotic arms can be equipped for automatic loading/unloading, and the machine can be integrated into a fully automatic production line as required by your production planning. This positions the DES series as a future-proof investment — capable of growing with your automation roadmap.
Frequently Asked Questions
Q: Can a CNC panel bender replace a press brake entirely?
A: Not necessarily. For very thick materials (beyond the panel bender's thickness range), certain deep-box profiles, or extremely small part geometries, a press brake remains the more versatile tool. However, for multi-variety, small-to-medium batch production of panels and enclosures, a panel bender is often the more efficient choice.
Q: What materials can Dontzer's panel bending center process?
A: The DES series handles stainless steel (up to 1.0 mm), carbon steel (up to 1.5 mm), aluminum (up to 1.6 mm), and other materials upon customization.
Q: How does the DES series compare to a robot-equipped press brake?
A: While a robot-equipped press brake adds automation to the loading/unloading process, it still requires die changes between part variants. The DES series eliminates tooling changes entirely, making it faster for high-mix production. Industry data shows panel benders can achieve 60 parts per worker-hour versus 6–10 parts per worker-hour on a typical press brake.
Q: What is the typical learning curve for operators?
A: With Dontzer's user-friendly HMI interface and flexible programming/debugging, new operators can master the system quickly — often within days rather than weeks.
Summary: Choose Your Bending Center by Production Profile
Your Production Profile | Recommended Dontzer Series |
Multi-variety, small & medium batch | DES Series Flexible Bending Center |
Large-size plate processing | DES Series (DES-2000 / DES-2500) |
Single-variety, large-batch | DFB Series CNC Panel Bender |
Small & thin sheets with strict surface requirements | DFB Series |
Need automation/robotic integration | DES Series with robotic arms |
The bottom line: Dontzer's DES series improves production efficiency, saves costs through lower labor and training requirements, strengthens factory competitiveness, and significantly reduces safety accidents. The DFB series delivers superior surface quality and high processing speed for dedicated high-volume production. Choosing the right series means getting the most out of every machine hour.
